PDF Manuals: SP404 Manual

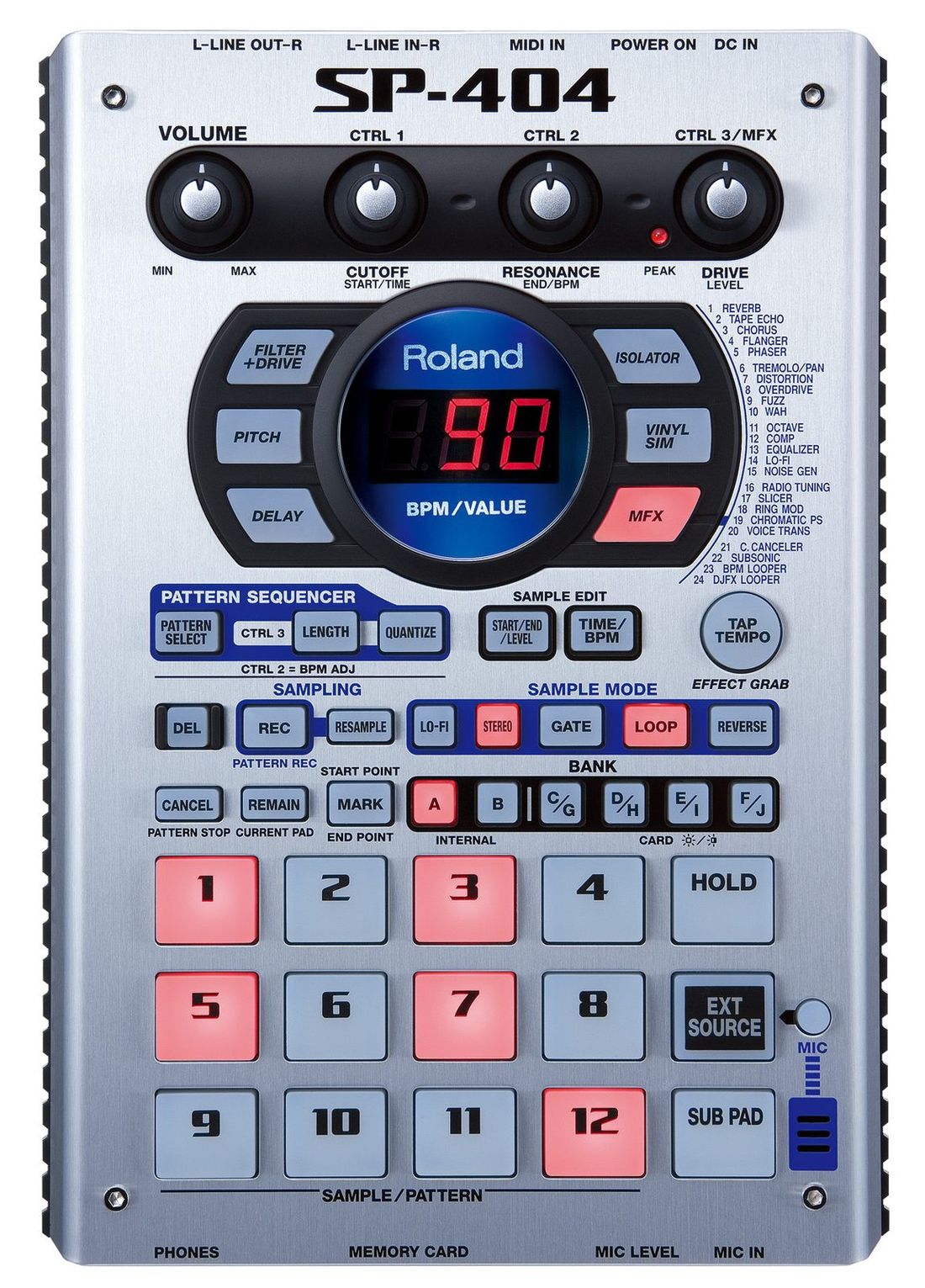

The Roland SP404 is a cool little work station for under $400. You can sample with the internal microphone, or plug in a microphone, or use the RCA line in on the back for your turntables or what ever you want. You can also import/export industry-standard WAV and AIF sample files via Compact Flash card from 32MB-1GIG. Cones with built-in 5 minutes of sample time or 11 minutes at lo-fi a feature used to bass out a sample. You get 29 effects, cool BPM light that blinks in sync to the BPM, quick sample edit to catch any part of the sample and real time sequencing. We got ours in Tokyo recently and had to go online to get the manual after searching on Roland's website we found this 1.04 update that fixes sample export problems. In this video we cover everything about the buttons on the front and how to use them, then we show you the best way to use the back to plug up some gear, then we sample some sounds, we use the internal microphone and also use the line in to sample, we import some files with our compact flash card, you can get it in our online store, then we use the sample edit and show you what to do and how to do it right. Next we sequence up a track with our samples.

The SP404 DVD part 2 picks up where we left off with the best way to use the onboard effects like reverb, flanger, delay, Voice Transformer, distortion, filter, Slicer, Isolator, Vinyl Simulator, and more. The SP-404’s effects can be applied to multiple samples simultaneously or live input signals so we add it to our samples and I pull out my bass and see how the effects work on the line input. We setup the sequencer to play multiple patterns. Next we explain all about quantizing the patterns you make up so they play back the way you played them. Then we cover the best ways to sync it up with a computer system like protools and we show you how to use midi to sync with our MPC500. Next we cover the most important procedure yet saving and loading your data to a compact flash card, the best way to do it, and how to use it when streaming form the card so you can use all 96 sample allowed on the card of your choice, and if you need samples we got them. These DVD's, the Roland SP404 instructional DVDs parts 1 & 2, covers everything you need to know to use this unique roland sampling workstation on your music to give it that SP404 sound. Just watch us and you can do it to, it's that easy and fast to learn, with our DVD's.

Customers Who Bought This Item Also Bought:

sp606 instructional dvd part 2 how to program a drum machine dvd art of sampling dvd how to make a beat dvd
Roland SP404 Instructional DVDs 1 & 2: Preview Videos (8)
Roland SP404:Functions
Roland SP404:Using Effects
Roland SP404:Format your Compact Flash
Roland SP404 Specification

Maximum Polyphony
12 voices
Internal Memory
24 (12 samples x 2 banks)
* Including Pre-loaded Samples
24 (12 patterns x 2 banks)
* Including Pre-loaded Patterns
Memory Card (CompactFlash)
96 (12 samples x 8 banks)
96 (12 patterns x 8 banks)
Sampling Frequency
44.1 kHz
Data Format
SP-404 original format (.WAV/ AIFF import/ export possible)
Sampling Mode
Sample Edit
Start Point, End Point, Level, Truncate
Pattern Sequencer
Maximum recordable notes
Internal Memory: Approx. 8,000 notes (Including Pre-loaded Patterns)
Memory Card (CompactFlash): Approx. 8,000 notes
96 ticks per quarter note
Pattern Length
1-99 measures
Recording method
Realtime Loop Recording (with quantize function)
29 types
Signal Processing
AD Conversion
24 bit
DA Conversion
24 bit
7 segments, 3 characters (LED)
Onboard Mic
Mono x 1
LINE INPUT Jacks (L, R), LINE OUTPUT Jacks (L, R), Headphones (PHONES) Jack (Stereo 1/4 inch phone type), MIC Jack, MIDI IN Connector, AC Adaptor Jack, Memory Card Slot (CompactFlash)
Power Supply
DC 9 V (Dry Battery LR6 (AA) type x 6 or AC Adaptor)
Expected battery life under continuous use
Alkaline: 6 hours
* These figures will vary depending on the actual conditions of use.
Current Draw
300 mA
Owner’s Manual, AC Adaptor (PSB-1U)
Size and Weight
178 mm
7 inches
257 mm
10-1/8 inches
72 mm
2-7/8 inches
1.3 kg
2 lbs. 14 oz.
